Profitec Pro 600: Vacuum Breaker ServiceUpdated 4 months ago

You will want to have your machine unplugged and completely cooled before performing the service!

Tools needed:
- 3mm Allen key or hex driver bit
- 17mm crescent wrench or deep socket
- Needle-nose pliers

Parts needed:
Vacuum Breaker Rebuild Kit

1. Set aside the cup warming tray, then remove the top panel of the machine. Unscrew the four Allen head screws as shown.

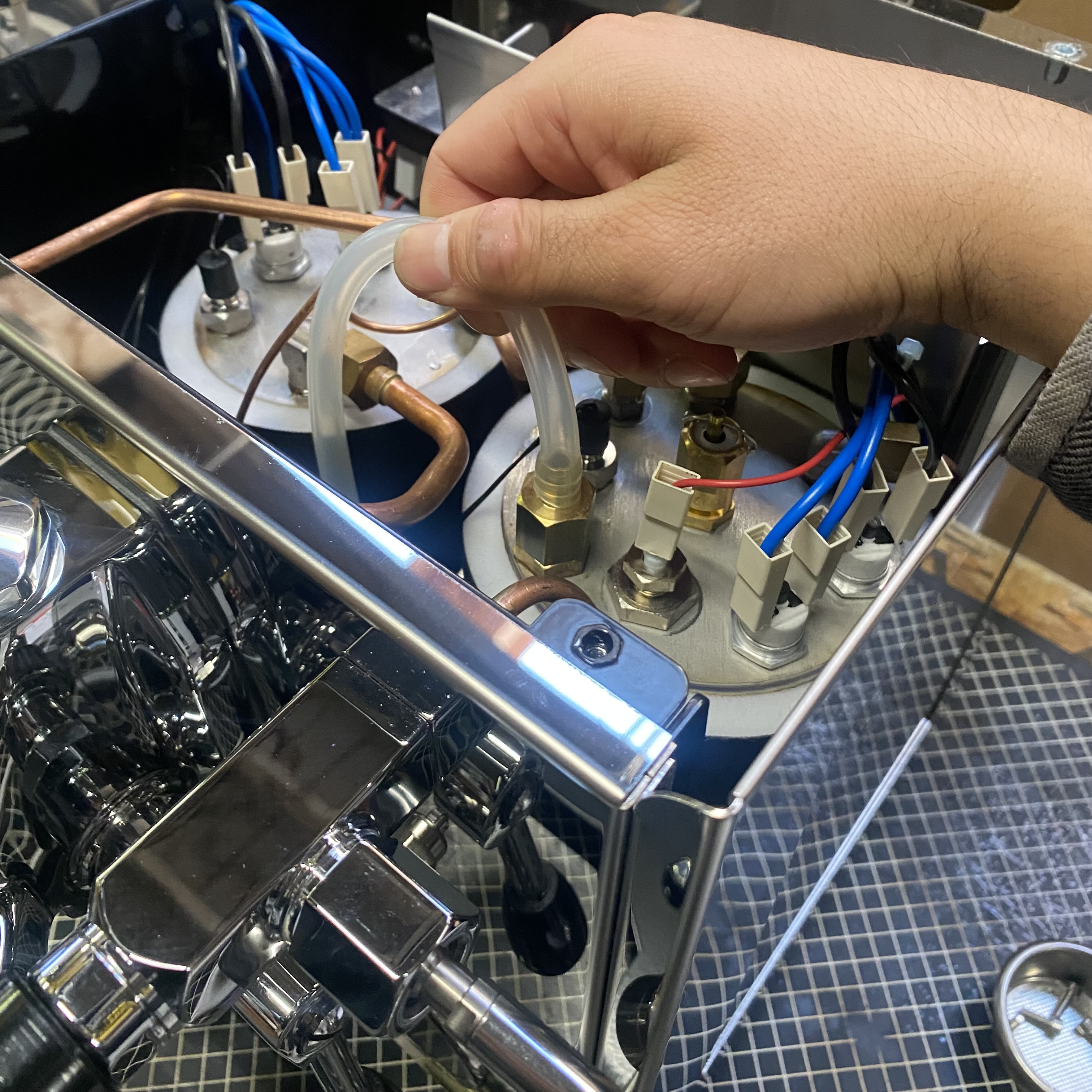

2. Locate the vacuum breaker and remove the flexible tube.


3. Using a crescent wrench or deep socket, carefully unscrew the vacuum breaker cap. (You may need to hold the bottom fitting with a second wrench to keep it from turning with the cap.)


4. Gently grip the vacuum breaker valve stem with the needle-nose pliers and pull the internal components free. Take note of the internal components' assembly orientation.




5. Inspect the internal components for scale build-up or signs of wear. It may be possible to resolve the issue by simply cleaning these components thoroughly and reassembling OR you may need to replace them with new parts before reassembly.


6. Don't forget to inspect and clean inside the cap and lower fitting!
