Profitec Pro 500: Indicator Light ReplacementUpdated 5 months ago

You'll need:

- pliers

- flat blade or flat screw driver

First, you'll need to Remove the Panels from your machine

Locate the lights on the inside of the front panel, and remove the wiring from the back of the appropriate light.

It may be helpful to use a flat blade to pry the plastic connector cap off of the terminal.

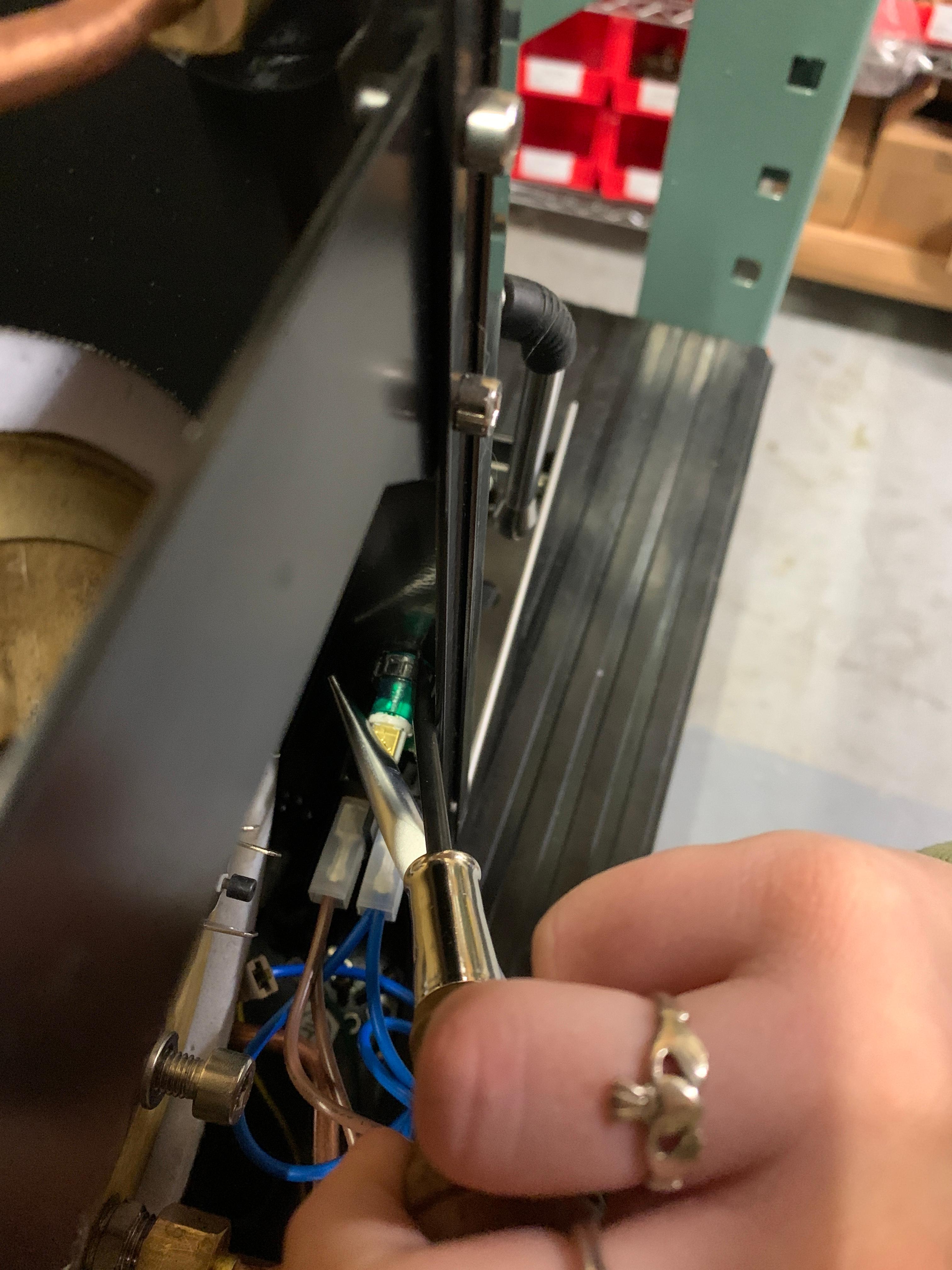

Once the wiring is removed, hold onto the terminal end of the light to be replaced, and use a flat blade to push and loosen the black retaining collar nut fastening the light to the front panel.

Once loose, you can use your fingers to unthread the rest of the way

Remove the light through the front of the machine

Replace a new light by following these instructions in reverse. If you have any questions, reach out to us at [email protected].
