Lelit Bianca: Testing the Steam Boiler Safety SwitchesUpdated 5 months ago

Tools needed:

- #2 Phillips screwdriver
- Small flathead screwdriver
- Multimeter or simple continuity tester

1. Remove the top panel.

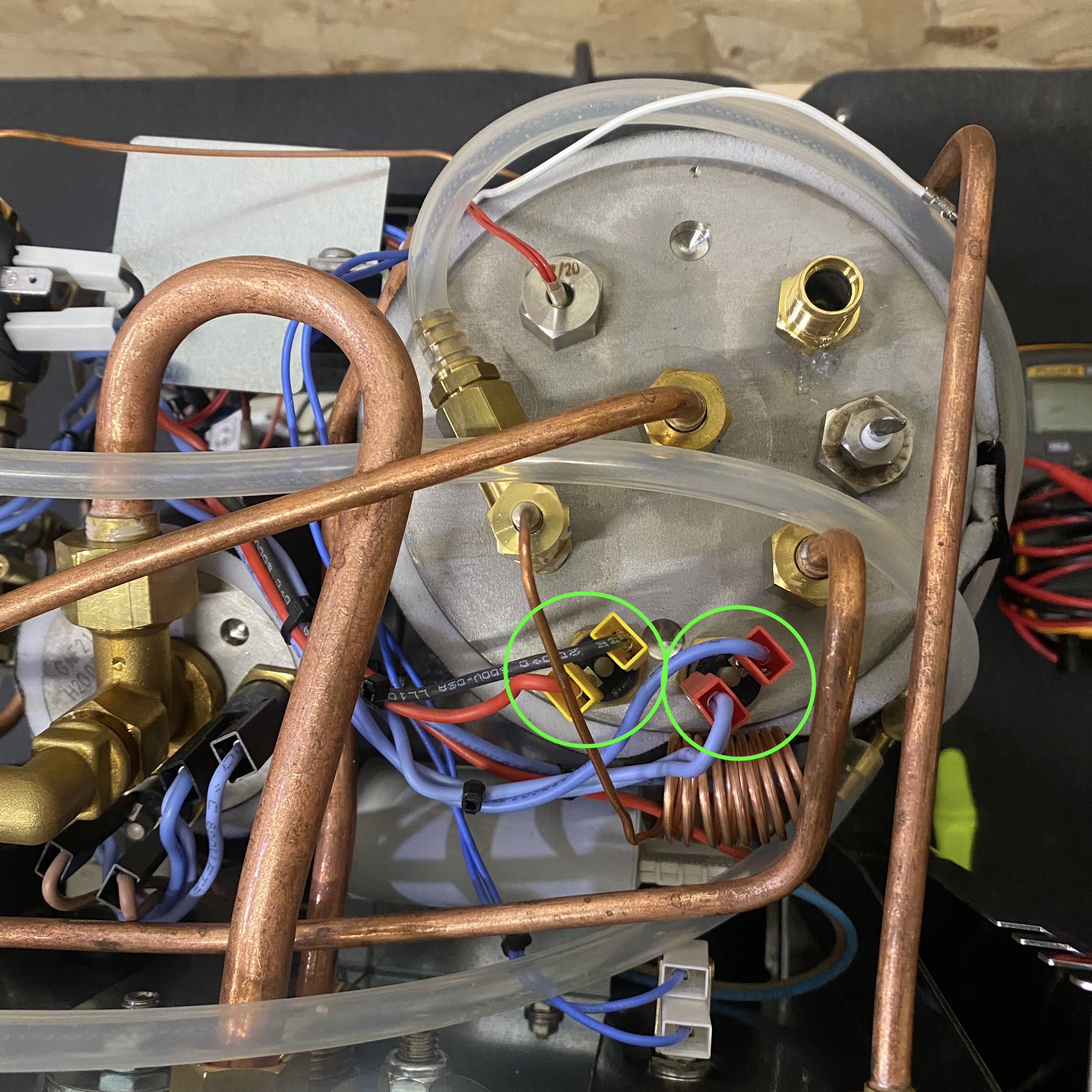

2. Identify the two safety switches on top of the steam boiler.

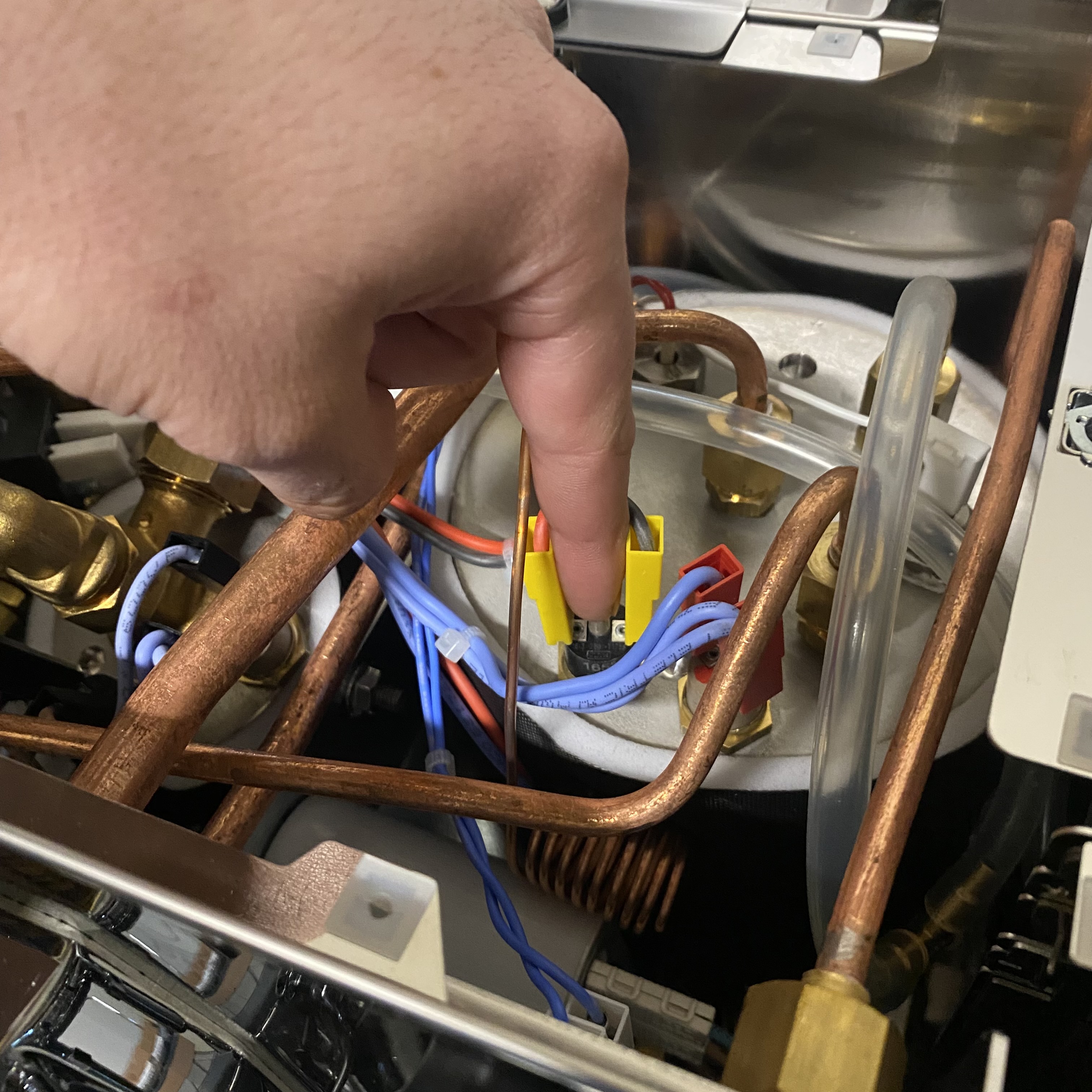

2. Carefully use a finger or small flathead screwdriver to gently press down on the rectangular button in the center of the safety switch, making sure it is fully depressed. Feeling a slight "click" when pressing this button indicates that the switch was tripped.



Testing the switches:

If the buttons don't appear to have tripped, but the steam boiler still fails to heat, test for continuity across the safety switches. Touch one probe from your multimeter or continuity tester to each of the two spade connectors on both safety switches. A lack of continuity, even when the center button is fully depressed, indicates a faulty safety switch; replace as necessary.
