LUCCA A53 Mini / Mini Vivaldi: Hot Water Solenoid DisassemblyUpdated 5 months ago

Tools Needed:

• 2x Adjustable Wrench
• Phillips Screwdriver

1. Remove the side panels of the machine.

2. Remove the front panel of the machine by unthreading the steam knob and then removing the two screws holding the front panel on. After this you can set the panel off to the side and out of the way.

3. Remove the outer portion of the solenoid by removing the nut holding it in place and sliding it off the post (watch out for the washer that's on there, you'll need that to reinstall it properly).

4. Remove the entire valve from the machine by unthreading this nut pointed out here, then pulling the valve off the machine.

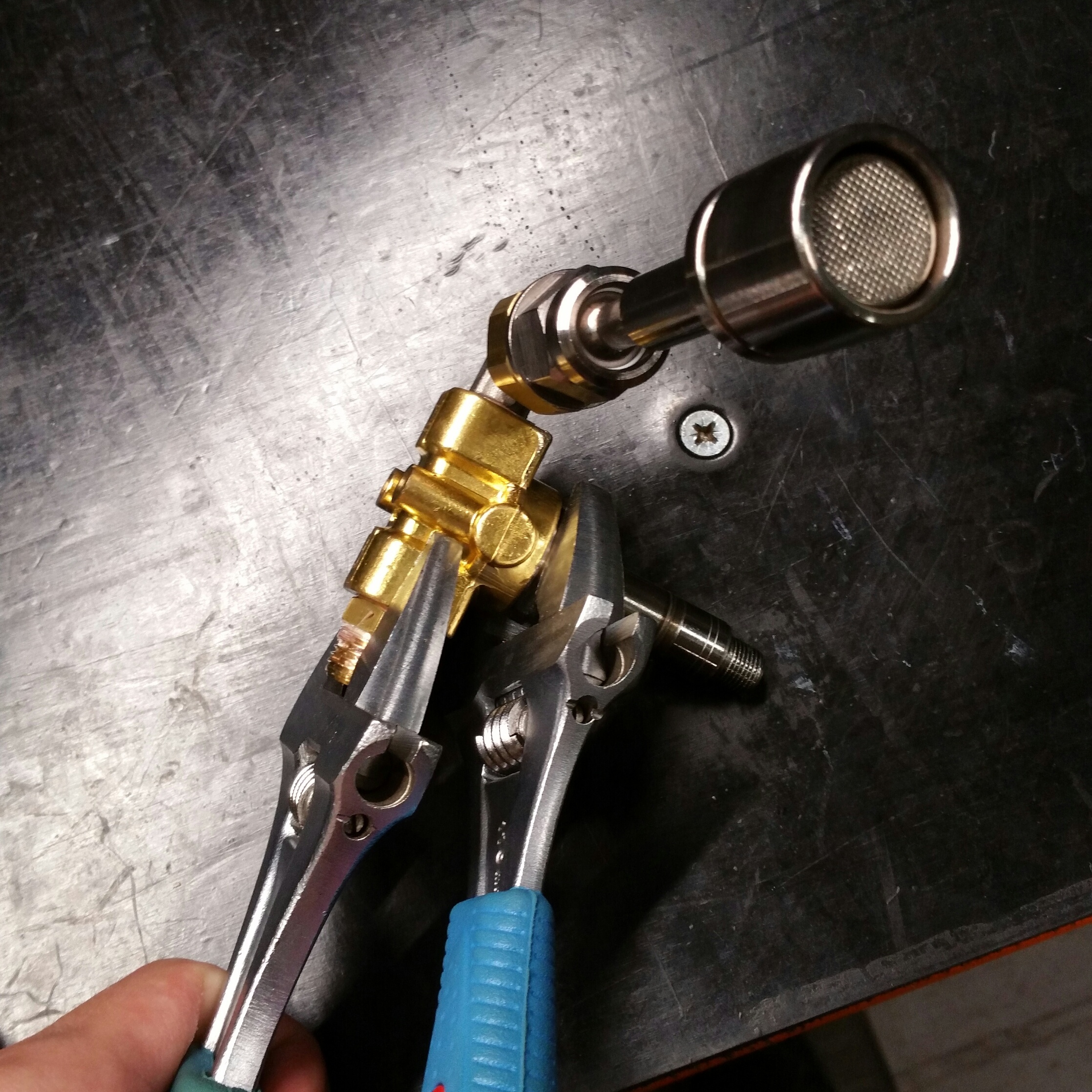

5. Use your two adjustable wrenches to remove the solenoid shaft from the body of the solenoid (it can be quite a tough fitting).

6. Ensure the rubber seat is clear of any debris, as well as the hole in the center of the solenoid body opening.
