Lelit Elizabeth: Panel RemovalUpdated 6 months ago

Tools needed:
-Phillips head screwdriver
-T20 Torx

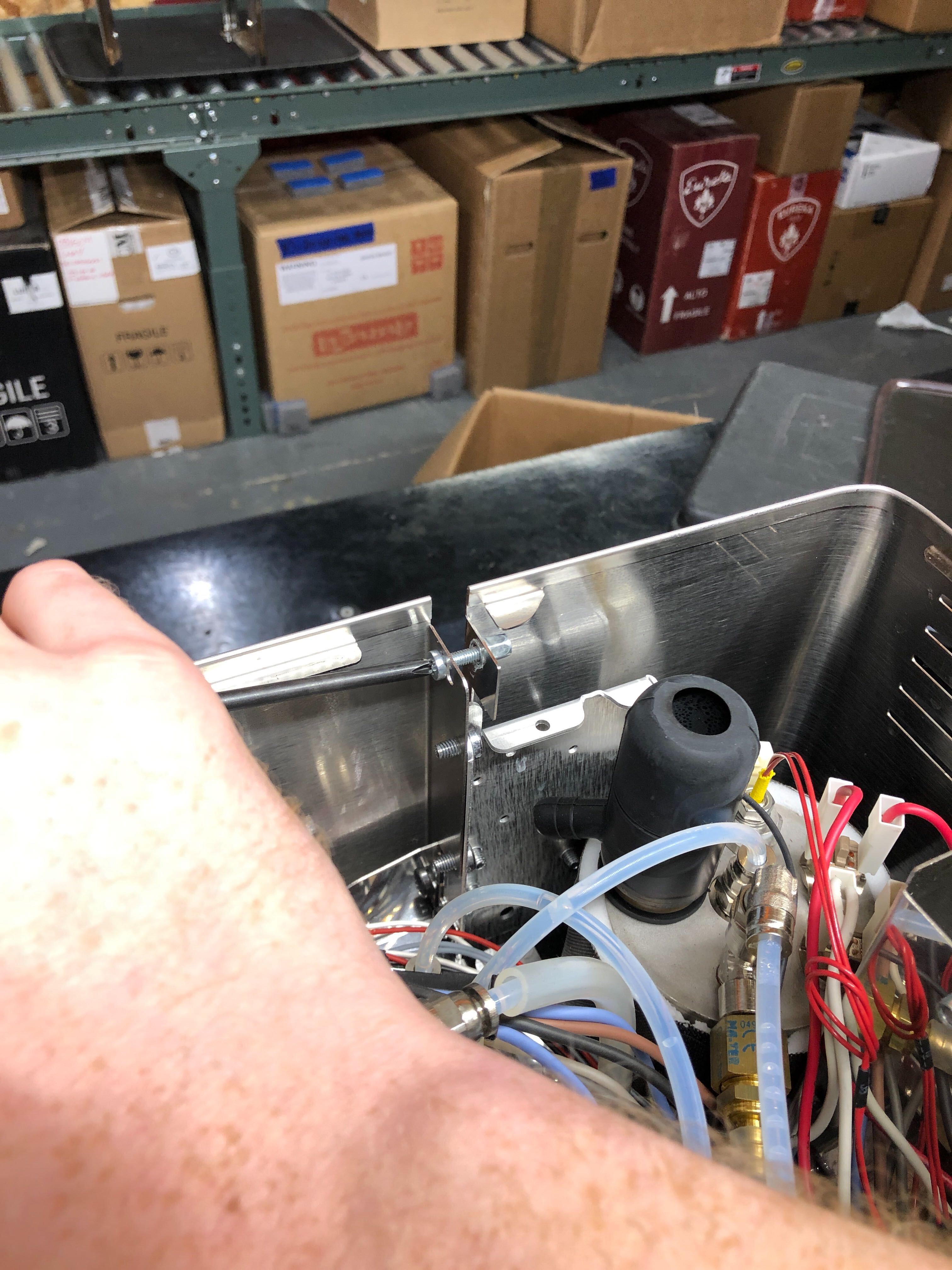

1. Remove the water reservoir cover and water reservoir exposing three torx screws. Remove the one screw on the left hand side of the machine, and loosen the two screws facing the front. The top panel will then be able to be removed by pulling up and toward the front of the machine.

- Stop and replace the reservoir if all you need is access through the top of the machine. -

2. Tilt the machine on its back and remove the three Phillips head screws attaching the panels to the frame.

3. Remove the two Phillips head screws attaching the outer panel to the front panel.

4. The panel will now be able to slide off of the back of the machine. Be careful not to cut any of the tubing with the sharp panel edges.

5. Remove the reservoir tray by unscrewing the four Phillips screws indicated.
