Compak E5: User Manual

Please read carefully before using your Compak E5 espresso grinder.

Setup Video

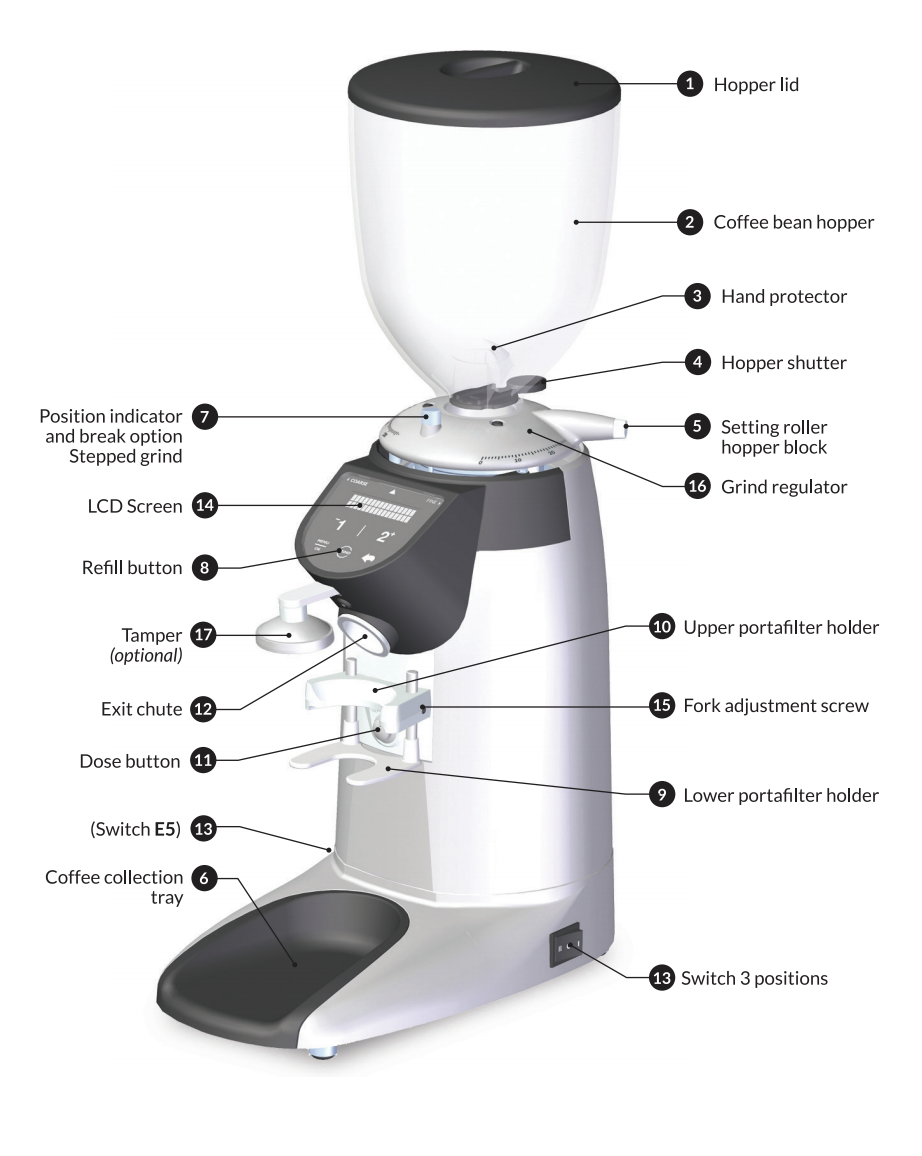

Grinder Diagram

Grind Adjustment

To adjust the grind setting, ensure that the collar's (16) set screw (7) is loosened by rotating it counter-clockwise until there is no more resistance. It is not removable, ensure that you do not loosen too far as this will re-engage the lock. Lower numbers on the collar indicate a finer setting, higher numbers indicate a coarser setting.

Remember, this means that rotating clockwise makes the grind coarser and rotating counter-clockwise makes the grind finer – this is opposite to how most grinders operate.

Timed Dosing

To adjust the timed dose settings press the menu button followed in quick succession by the number representing the dose setting you'd like to change. The display will begin blinking. By pressing the plus and minus buttons you can change the timed dose. To save and exit simply press the menu button again.

Technical Details

58 mm flat steel burrs
Height: 16.5"
Width: 6.25"
Depth: 15"
Weight: 20 lbs
Voltage: 110V
Power: 550W
Burr speed: 1370 RPM
Bean hopper capacity: 300 grams (short hopper)
Grind speed: 18 grams in 5.5 seconds

Now you're ready to start pulling shots! Check out our Espresso 101 section to learn about steaming milk, latte art, our suggested starter espresso recipe, grinder dial-in tips and much more.
