Bezzera BZ10: Testing the Boiler ElementUpdated 7 months ago

You'll need:

- 3mm Allen Key

- Multimeter

The machines will need to be completely cool and unplugged to start the process

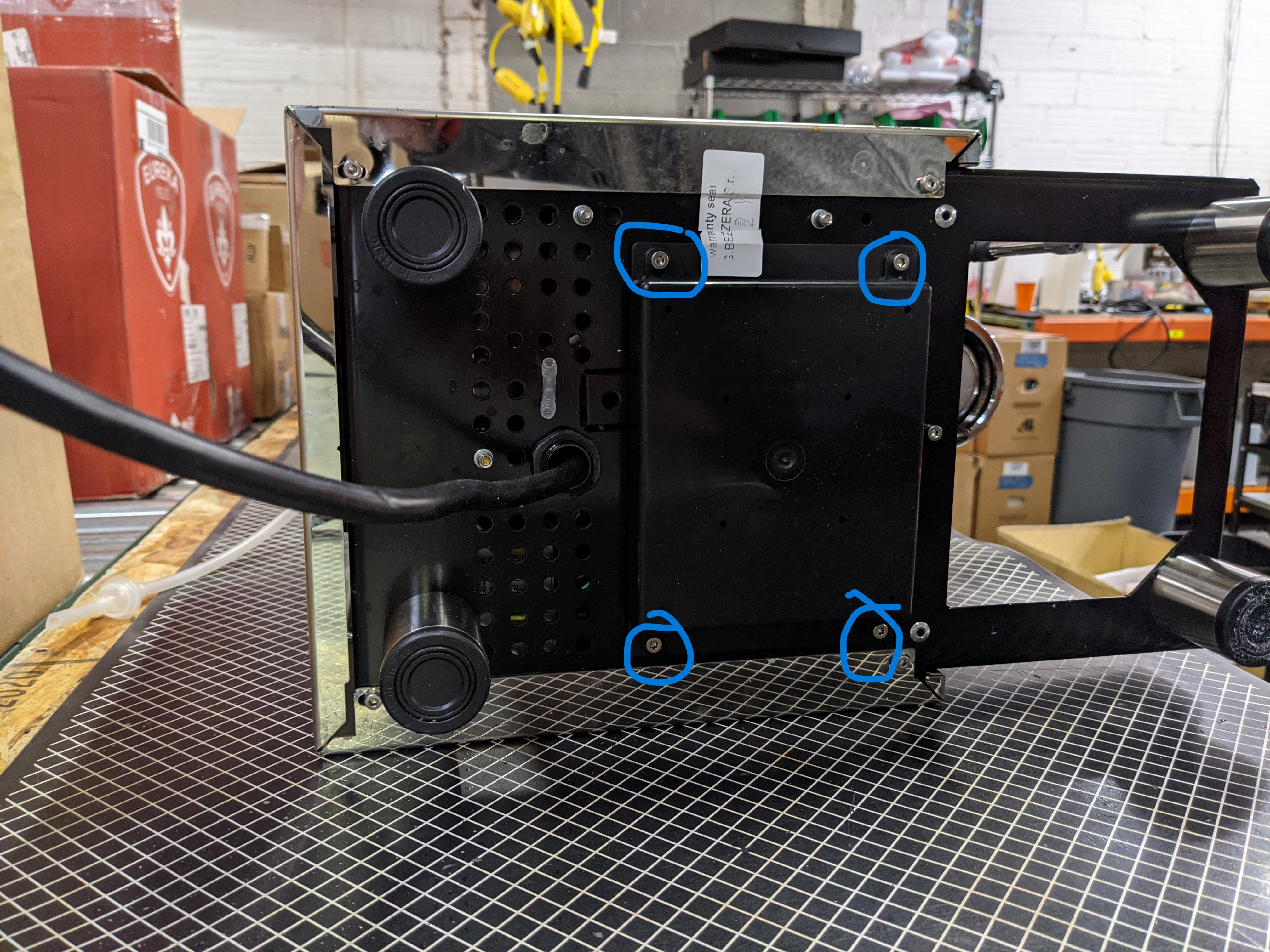

Remove the bottom panel with the 4 screws marked below. A 3mm Allen Wrench is used

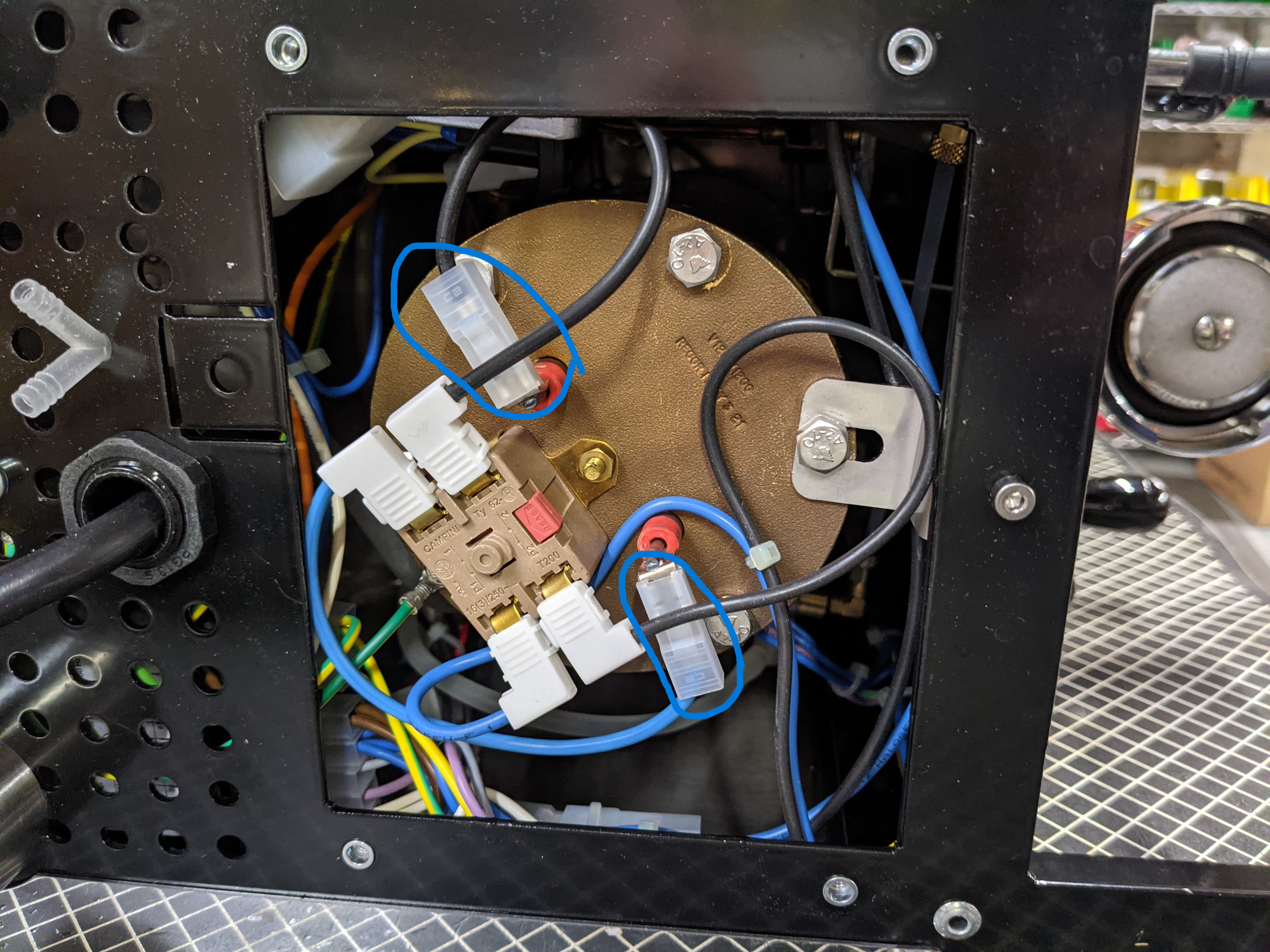

Unplug the wires marked below one at a time, then plug the machine in and turn it on to see if it stops tripping the GFCI

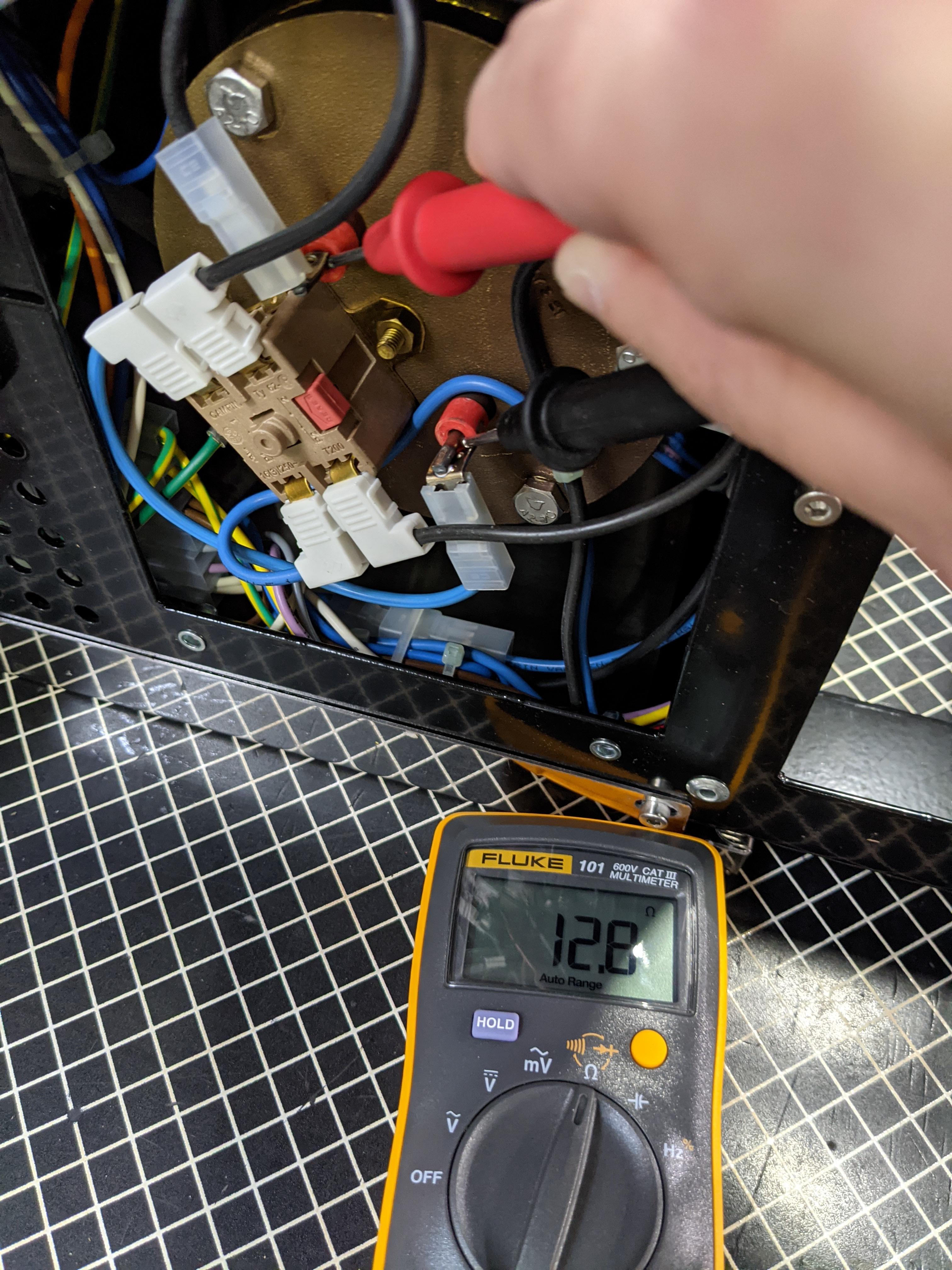

If you have a multimeter you can test the resistance of the element as shown below
