Alex Duetto: Steam Temperature Probe ReplacementUpdated 5 months ago

Before doing this we recommend unplugging your machine and allowing it fully cool off. Tools required:

• #2 Phillips screwdriver 10mm wrench
• snips (for zip ties)
• 17mm wrench
• Teflon tape

Start by removing the top plate (#2 Phillips driver) and side/back panels (10mm wrench).

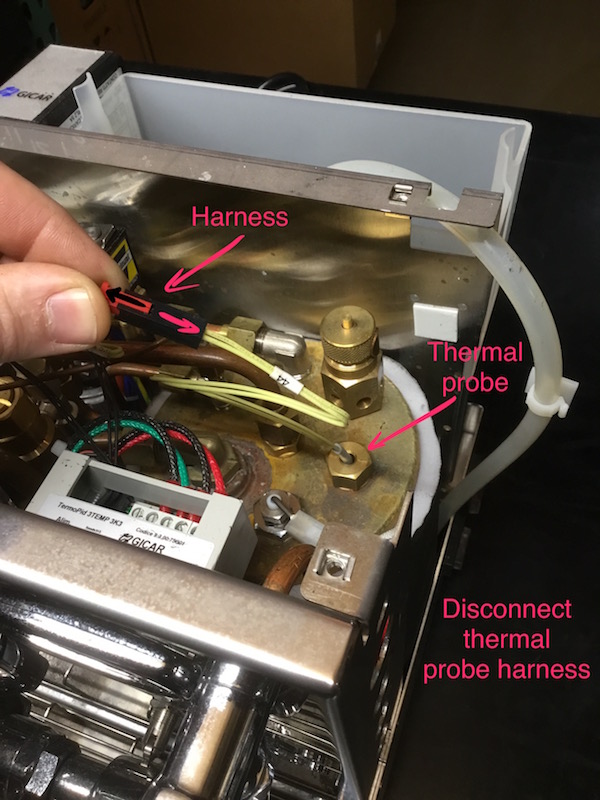

Disconnect thermal probe wire harness, you may need to remove a couple zip-ties first.

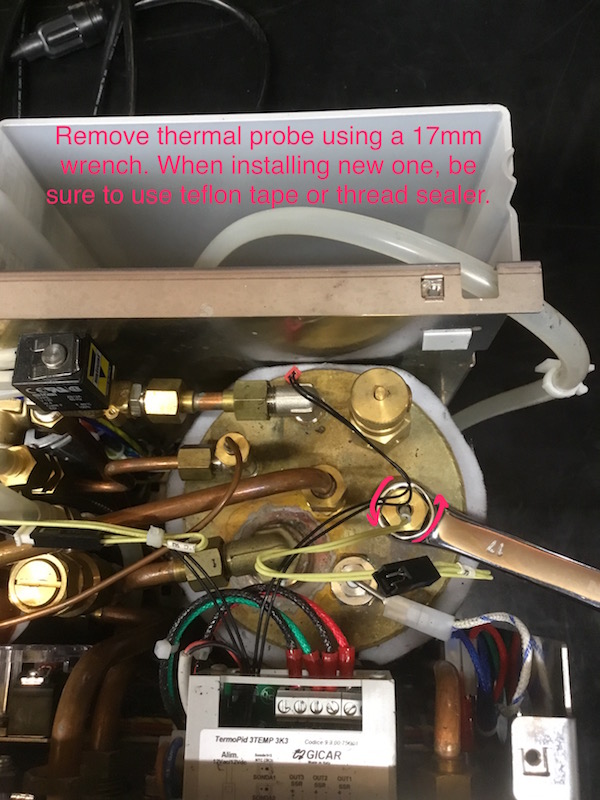

Using a 17mm wrench, remove thermal probe.

Install new thermal probe using a thread sealer such as teflon tape. Reassemble and test machine.
